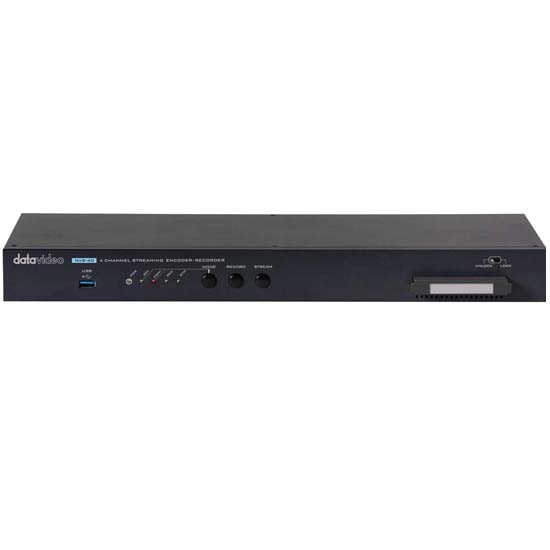

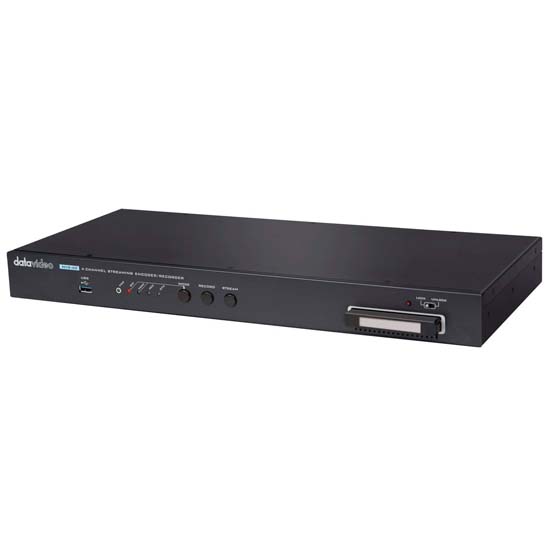

The 1 RU 4-Channel Streaming Encoder and Recorder from Datavideo streams and records a variety of video resolutions by setting the encoder with various video formats and bit rates according to application and internet bandwidth limitations. The streaming encoder/recorder features one SDI and four HDMI video inputs as well as one HDMI 1.4 and one SDI video output. Resolutions up to 1920 x 1080 are supported.

• Four input channels for video encoding, capturing, and streaming
• H.264 streaming and recording simultaneously
• Quad view, PiP, PoP, full screen, PbP screen layouts
• Dynamic parameter settings adjustment: GOP size, frame rate, and bit rate
• Dual-color LED indicator showing the status or detections

The Datavideo NVS-40 is a 4 Channel Streaming Encoder/Recorder which features streaming and recording features in a single device to help producers or users to record and stream high quality videos simultaneously by setting different video formats and bitrates according to different applications and internet bandwidths.

The Datavideo NVS-40 supports SDI x 1 and HDMI x 4 video inputs (Channel 1 source can be either SDI or HDMI).

The NVS-40 allows up to 4 1080P signal sources to be encoded to 8 streamings in different bitrates simultaneously.

The NVS-40 records up to 4 inputs and 1 output channel video signals to hard disk or live-streams those videos to up to 10 different streaming platforms at the same time. Moreover, The NVS-40 also allows external XLR balanced audio and RCA unbalanced audio input sources.

It can also be an ISO recorder to record backup files for each input channel.

The NVS-40 can be a Video IP switcher to switch between different videos via internet connection which is suitable to control remotely.

Furthermore, the 2.5” HDD/SSD inserted into the NVS-40 front panel can be formatted in NTFS, FAT and exFAT formats which allow users to record single video file that the file size exceeds 4GB.

Brand: Datavideo
Package Dimensions:48 x 18 x 4.4 cm; 2.3 Kilograms
Hardware Interface: HDMI
Connector Type: HDMI
Item Weight: 2 kg 300 g

In the Box:
Datavideo 4-Channel Streaming Encoder and Recorder (1 RU)
12 VDC Power Adapter
2 x Rackmount Ears
6 x M4 Screws for Rackmount Ears
2.5" Removable HDD/SSD Enclosure
4 x Screws for 2.5" Removable HDD/SSD Enclosure
SATA to USB 3.0 Cable
Limited 1-Year Warranty Extendable to 3 Years upon Registration.
